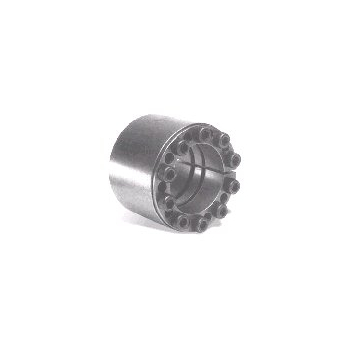

Drivelock® 11 Bushes are self centering, offer very high torques 784 to 419860 Nm and are available in bores from 25 to 300mm
Drivelock 11 40x75 mm (DL11/40)
Drivelock 11 40x75 mm (DL11/40)
| Part No. | 7930-018 |
| Code. | DL11/40 |
| d (h8) (mm) | 40 |
| D (mm) | 75 |
| M (mm) | M8 |
| L (mm) | 62 |
| B (mm) | 54 |
| Ts Nm | 41 |
| T Nm | 2843 |
| F kN | 142 |
| p N/mm2 | 113 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
