SPB 8 Groove V Pulleys taper bore for use with our taper bushes.
SPB200/8 V Pulley For 3535 T/L Bush (SPB200/8)
SPB200/8 V Pulley For 3535 T/L Bush (SPB200/8)
| Part No. | 7804-428 |
| Type | SPB200/8 |
| Diameter P (mm) | 200 |
| Diameter O (mm) | 207 |

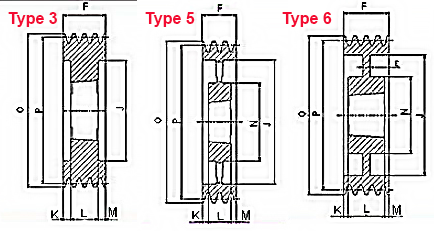

| Style | 3 |
| Bush | 3535 |
| Bore ø max. | 90 |
| E | |
| J | 157 |
| K | 34.5 |
| L | 89 |
| M | 34.5 |
| N | |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
