SPZ 3 Groove V Pulleys taper bore for use with our taper bushes.
Spz67/3 V Pulley For 1108 T/L Bush (SPZ67/3)
Spz67/3 V Pulley For 1108 T/L Bush (SPZ67/3)
| Part No. | 7804-688 |
| Type | SPZ67/3 |
| Diameter P (mm) | 67 |
| Diameter O (mm) | 71 |

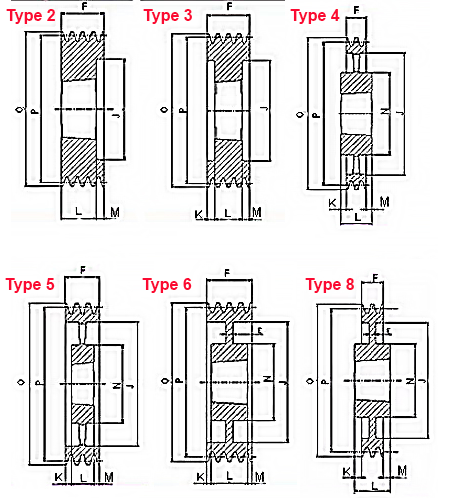

| Style | 8 |
| Bush | 1108 |
| Bore ø max. | 28 |
| E | |
| J | 42 |
| K | 18 |
| L | 22 |
| M | |
| N | |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
